Forged Steel Gate Valve
Product Range

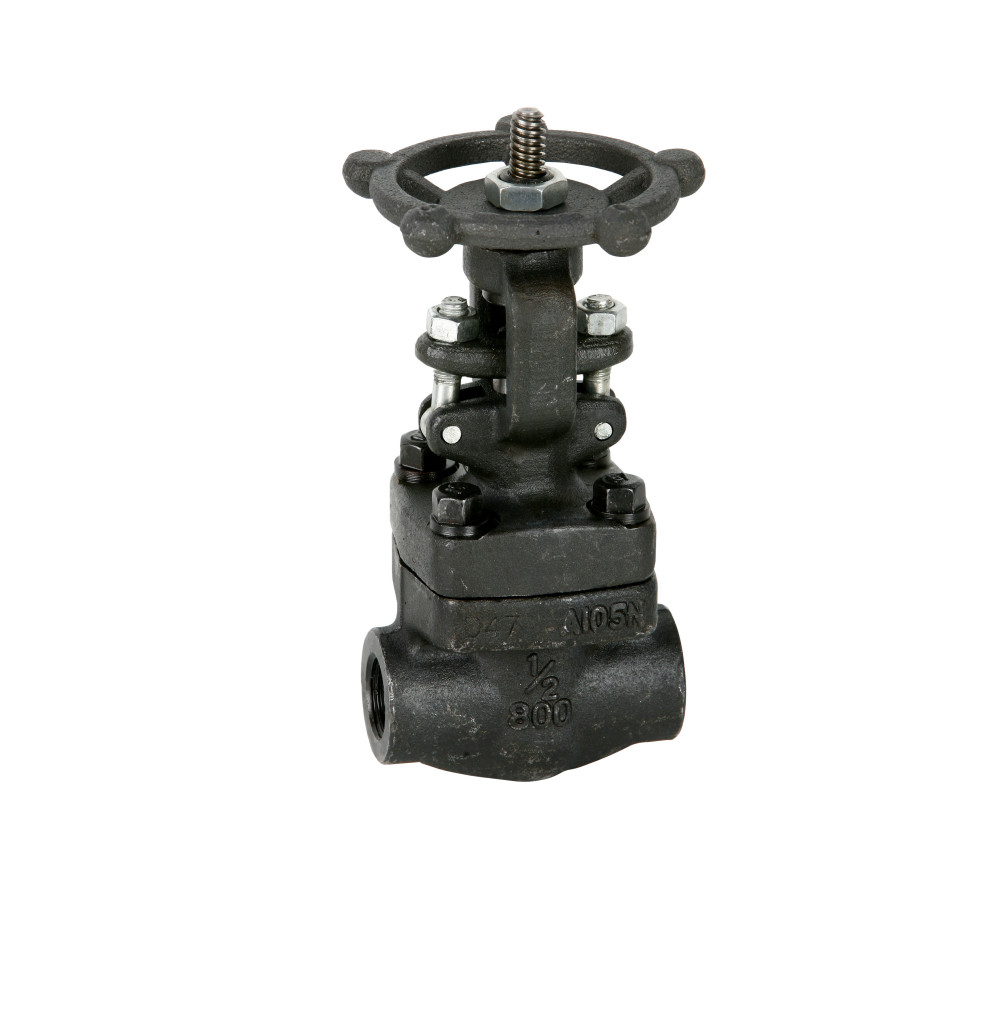

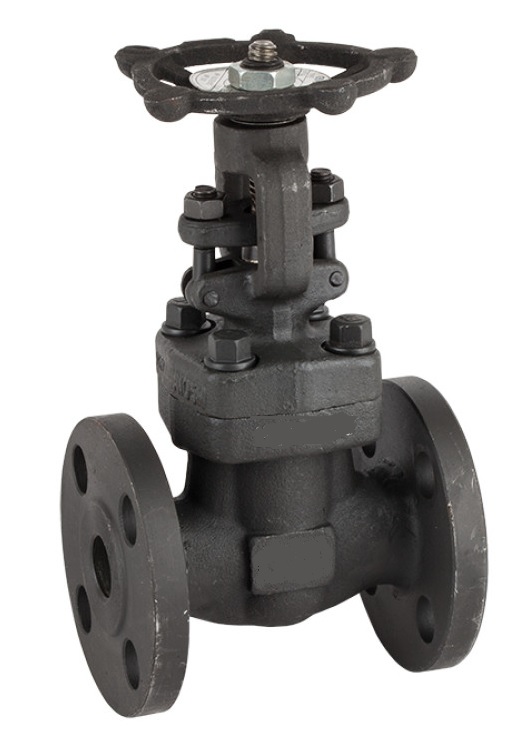

Forged Steel Gate Valve
Flow-Tek Forged Steel Gate Valves are engineered to deliver exceptional strength, dependable sealing, and long-term operational reliability. Designed for demanding high-pressure and high-temperature environments, these valves are ideal for steam systems, oil and gas processing units, power generation facilities, and chemical and petrochemical plants.
All valves are manufactured in accordance with internationally recognized design codes and standards, ensuring complete interchangeability, superior quality, and exceptional workmanship.
Flow-Tek Gate Valves are designed in a rugged Outside Screw and Yoke (OS&Y) configuration with a bolted bonnet construction, rising stem, and non-rising handwheel arrangement. The straight-through bore ensures minimal pressure drop, reduced turbulence, and lower erosion, enhancing overall flow efficiency.Built with advanced engineering features, these valves deliver reliable and cost-effective flow isolation across a broad range of sizes and pressure classes. They are ideally suited for high-pressure, high-temperature services and compatible with a wide variety of industrial fluids.
Nomenclatur
| PARTS NAME | QTY. |
| BODY | 01 |
| BONNET | 01 |
| WEDGE | 01 |
| SEAT RING | 02 |
| SPINDLE | 01 |
| GLAND BUSH | 01 |
| BACK SHEET BUSH | 01 |
| GLAND FLANGE | 01 |
| GASKET | 01 |
| GLANDE PACKING | |
| BONNET NUT | 01 |
| HAND WHEEL | 01 |
| HAND WHEEL NUT | 01 |
| BOLTS & NUT | AS PER STANDARD |
Valve Operation
| Operator | Size Range |
| Hand wheel | 2" - 10" - Class 150, 300, 600 |
| 2" - 4" - Class 900 & 1500 | |
| Gear Operator | 12" & Above - Class 150, 300, 600 |
| 6" & Above - Class 900,1500 |
Material
| STRUCTURE | End Connection | Flanged End Raised Face, Butt Weld End, RTJ,. ETC |
| MATERIAL | Operation | Hand wheel, Gear Operator, Electrical Actuator, Pneumatic, Hydraulic |
| Shell | WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu,Hastelloy, Inconel, Duplex Stainless Steel | |
| Trim | 13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel |
Features
Flow-Tek provides Gate Valves equipped with Pneumatic, Electric (Motorized), or Gear Operation, complete with limit switches. These valves are engineered to meet specific operational requirements.
Extended bonnets with adequate gas column length—customizable as per client specifications—are provided for all valves. This design ensures the stem packing remains safely distanced from cold fluids, maintaining reliable functionality and long-term performance.
- Sturdy Outside Screw & Yoke (OS&Y) Bolted Bonnet for reliable performance.
- Robust design built to last and withstand tough industrial conditions.
- Long-lasting leak-tight service for peace of mind.
- Back-seating surfaces integrated into the bonnet for smooth operation.
- Flexible installation with socket-weld or threaded ends to suit your needs.
Testing Standard
| TEST TYPE | TEST PRESSURE | |||||
| CLASS 150 | CLASS 300 | CLASS 600 | CLASS 800 | CLASS 1500 | ||
| HYDRO SHELL | Kg/Cm2 | 30 | 76 | 150 | 210 | 396 |
| Psig | 425 | 1080 | 2130 | 2960 | 5625 | |
| HYDRO SEAT | Kg/Cm2 | 22 | 55 | 110 | 153 | 291 |
| Psig | 310 | 780 | 1560 | 2170 | 4125 | |
| AIR TEST | Kg/Cm2 | 6.0 | 4 TO 7 | 4 TO 6 | ||
| Psig | 80 | 60 TO 100 | ||||
Note :
- Valves can be supplied with actuator, pad lock and other accessories like limit switch, position indicator, and solenoid valve as per requirement.
- Stem extension, underground service features are available.
- Design standard up to 24″ is API 600 and above 24″ is BS 1414.
Applicable Standard
| Design Standard | API 600/BS1414 |
| Testing Standard | API 598/BS EN 12266-1 |
| Face To Face | ASME B 16.10 |
| End Connection | Flanged End - ASME B 16.5,Butt Weld End - ASME B 16.25 |
| Pressure - Temperature Chart | ASME B 16.34 |
Applications
- Ideal for refineries and petrochemical industries.
- Suitable for fertilizer plants.
- Reliable performance in thermal power plants.
- Perfect for various other process industries.
